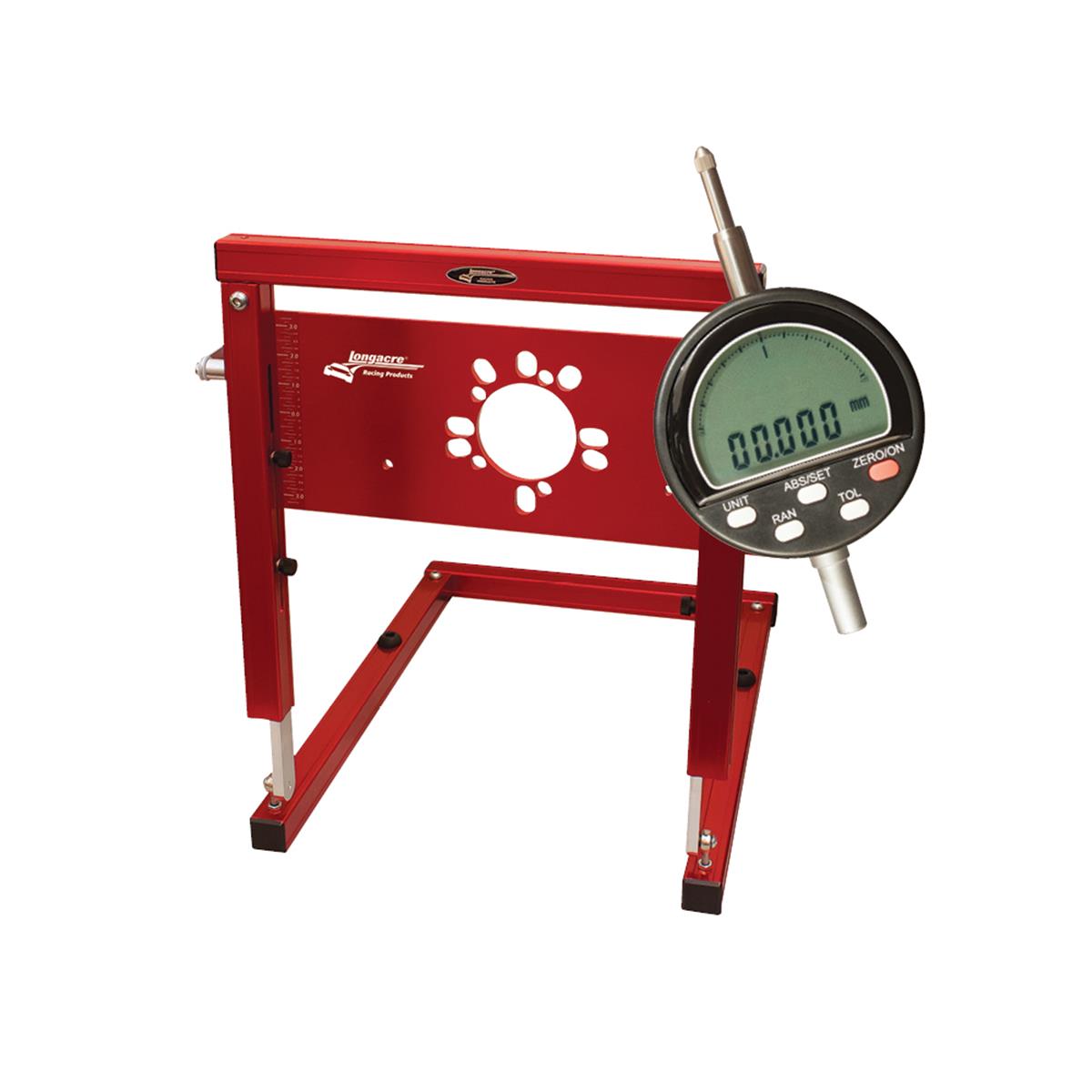

Precision Digital Bump Steer Gauge with Billet Plate

New precision plate, 3/8" thick T6 Billet aluminum for the ultimate in accuracy. Anodized and laser engraved
New compact frame. More rigid billet and tube design for the best accuracy. Bright dip anodized.
This simplified bump steer gauge design uses a single precision digital indicator to tell you directly the exact amount of bump steer within .001". No need to subtract one reading from another - no chance for error.

Most accurate, easiest and quickest way to measure your critical bump steer
Easier to use - just push Zero, move suspension, read bump directly to .001"
Extended height design - check bump steer at ride height or on stands
Includes NEW 3/8" thick billet wheel plate with mounting holes for most 5 bolt patterns (4-1/2" - 5") and most wide 5 plus 4, 5 & 8 bolt drive flanges, adjustable stand and precision digital indicator
Center hole is 3 1/4"
Note: Snap cap hubs will require PN 79121 Snap Cap Hub Mounting Stand-offs for use with the Bump Steer Gauge.

Replacement battery for digital indicator: CR2032
