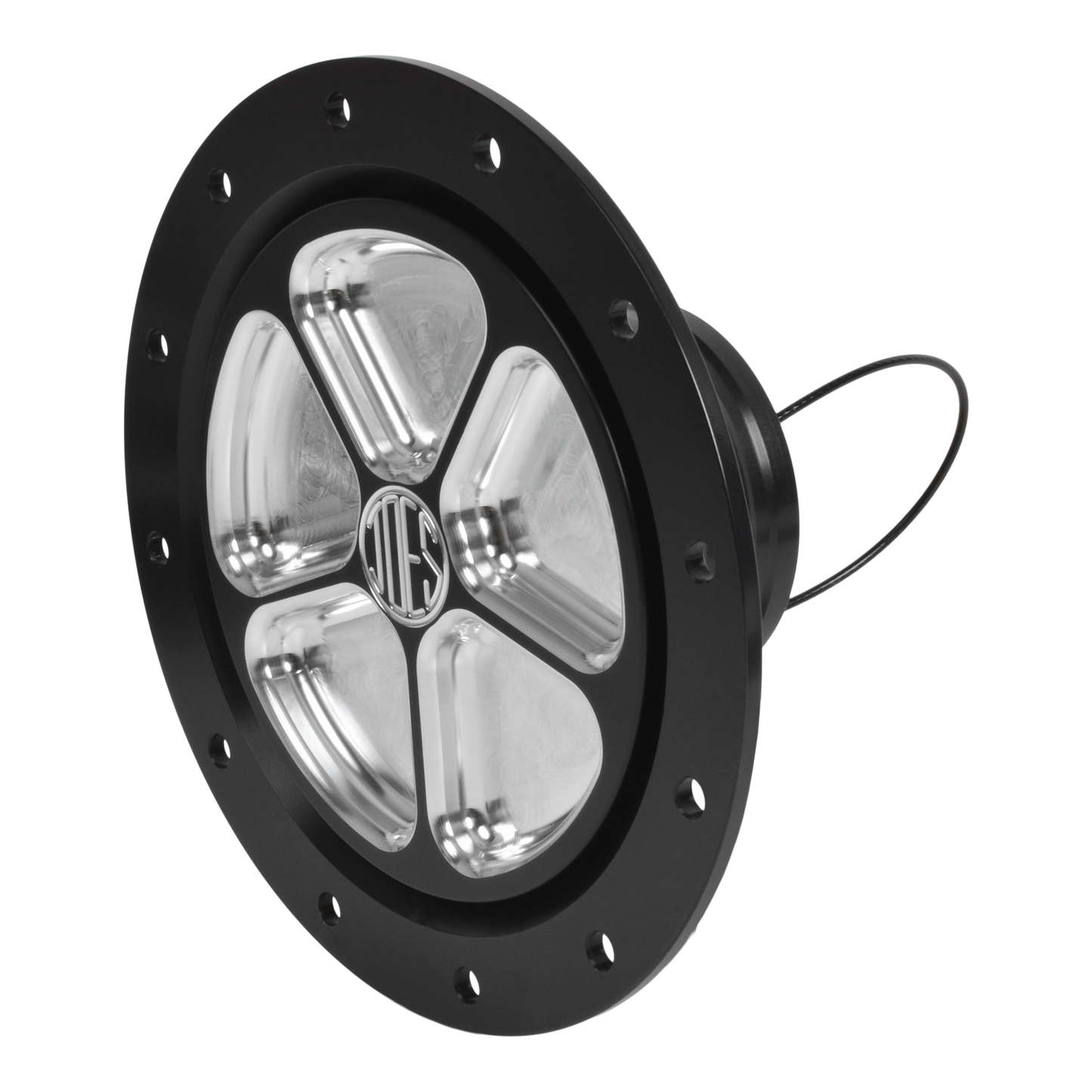

Fuel Filler, 5 Pocket, Black
Fuel Filler, 5 Pocket, Black
SKU:13202-B
Refuel with confidence using the JOES Racing Products Fuel Filler, crafted from durable 6061-T6 aluminum for exceptional strength and reliability. Designed with both functionality and safety in mind, this fuel filler ensures a smooth and secure refueling process.
Key Features:
-
Material: Machined from high-grade 6061-T6 aluminum, providing robust construction and longevity.
-
Gasketed Cap: The thread-in cap is equipped with a gasket to prevent leaks and enhance safety during refueling.
-
Design Specifications:
- Overall Diameter: 5½”
- Opening Diameter: 1⅞”
- Overall Length: 2”
- Bolt Circle: 4.900” Diameter
- Neck Diameter: 2¼” (suitable for 2¼” I.D. hose)
- Hole Diameter: 12 holes @ .200” for ³/₁₆” rivets
Upgrade your refueling setup with the JOES Racing Products Fuel Filler, combining rugged construction with thoughtful design to improve your race day experience.
